It is reported that CBN10/CBN100 has similar composition to CBN010, but CBN010 adopts a newly developed manufacturing method with an extremely uniform microstructure. The insert has a low content of cubic boron nitride (CBN) and an average particle size of 1.5 μm, using a TiC ceramic binder. This improves wear resistance and toughness and provides excellent processability when processing most materials. CBN010 can also successfully process tool steel, high speed steel, high strength steel, martensitic stainless steel, iron-based powder materials and surface hardened alloys due to its optimized performance for case hardened steel and bearing steel.
The CBN010 blade is available in one-piece, full-face, tip-edge and multi-blade versions. The full face and tip-edge inserts have a CBN up to 1.6 mm thick and feature a stress-free, integral tip. The tip is welded using advanced brazing technology to achieve the highest strength connection between the tip and the carbide blank.

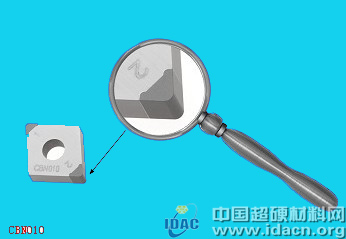

CBN010 blade for steel turning
Abstract Recently, Seco introduced a new uncoated blade CBN010. With its outstanding performance, the CBN010 is suitable for continuous to medium interrupted cutting. This new insert has an extremely uniform microstructure that provides consistent performance and consistent tool life...
